5-output expander for Quadipus

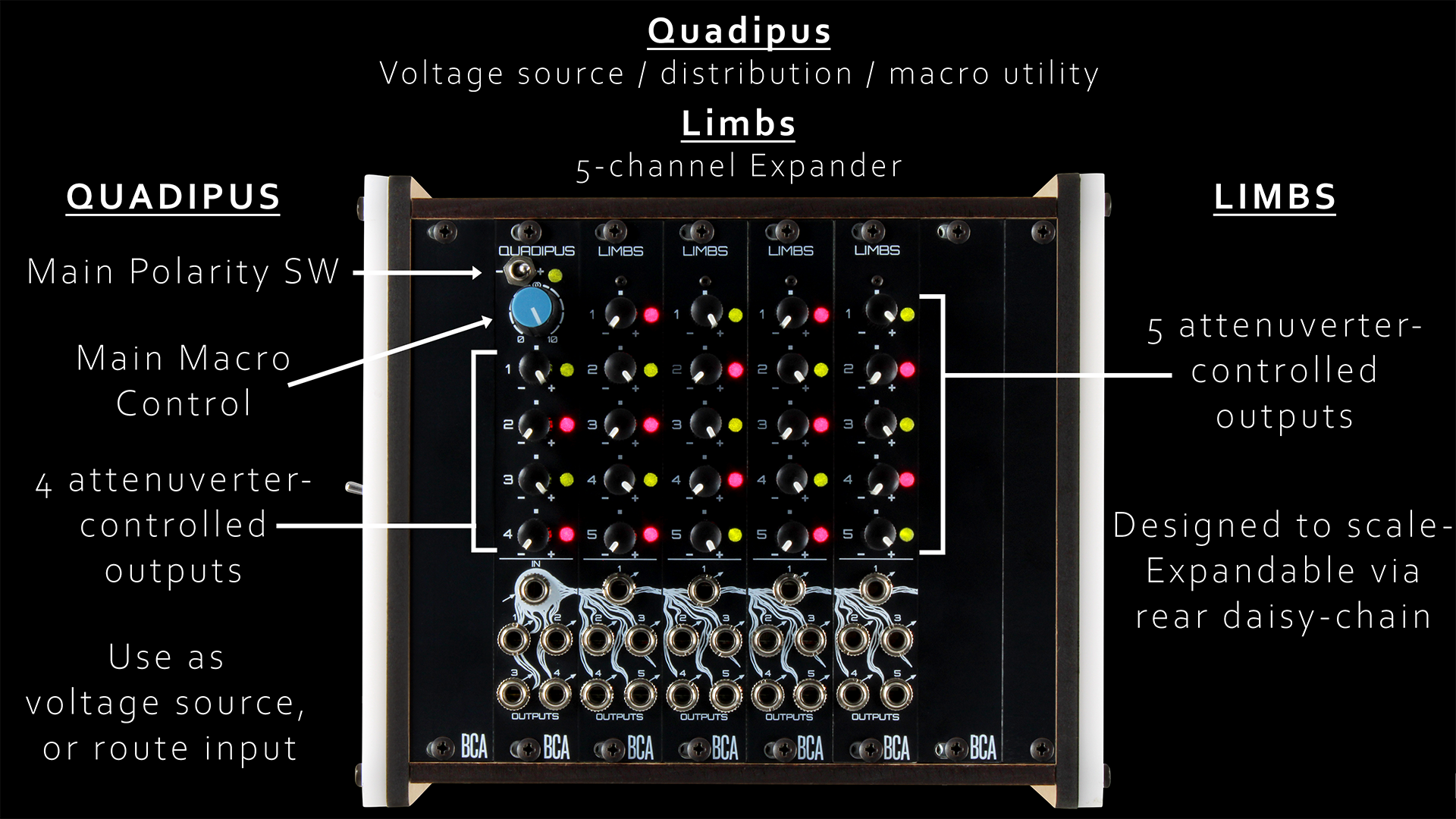

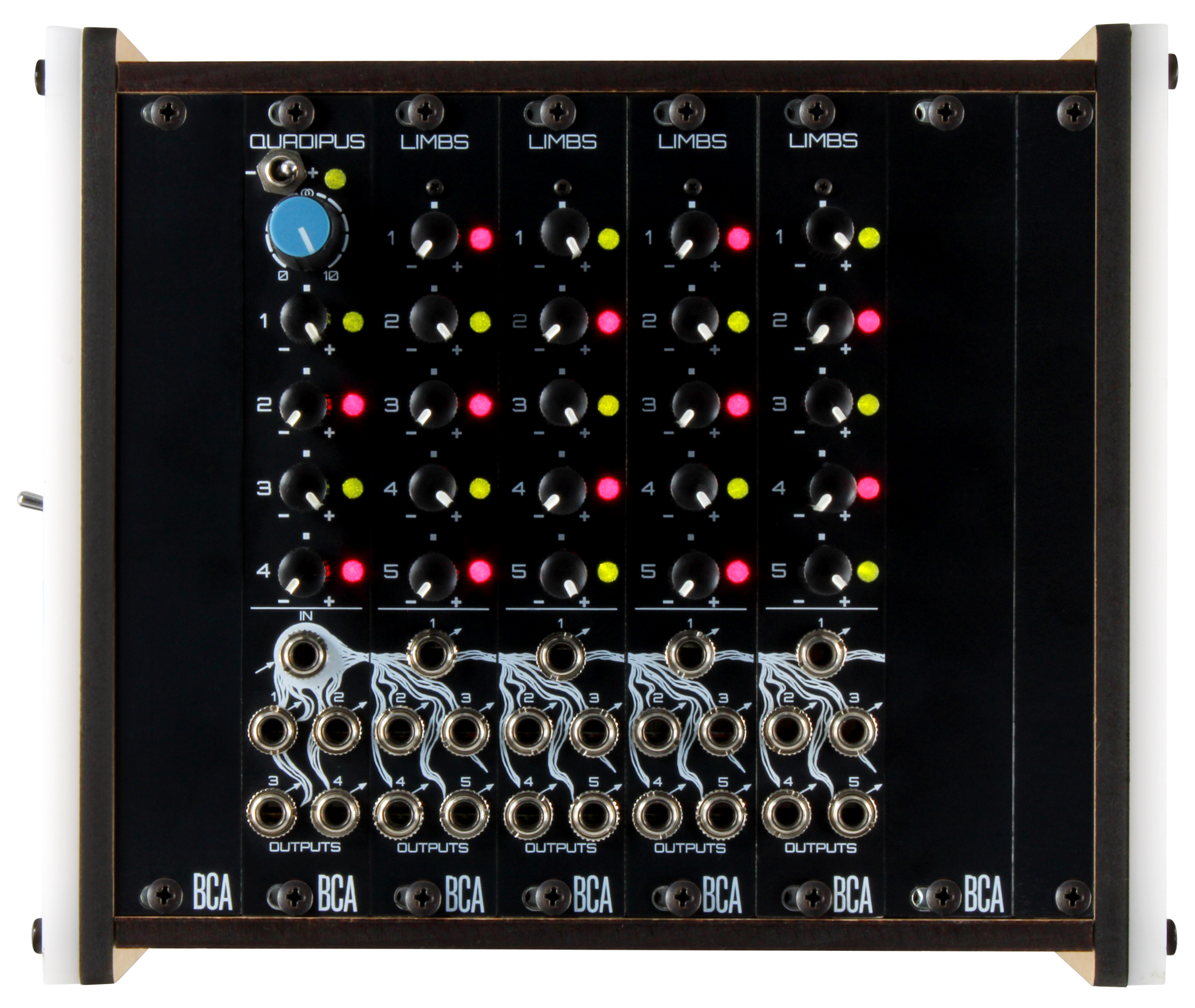

Limbs is an expander module for Quadipus, adding five additional output channels to the system. Like Quadipus, each output provides independent attenuverter control for level and polarity.
Each output on Limbs includes a bi-color (green/red) LED that reflects the polarity and activity of the output signal. As with Quadipus, slower (non audio-rate) signals allow the LED behavior to visually represent signal shape, while audio-rate signals appear as a steady yellow indication of activity.

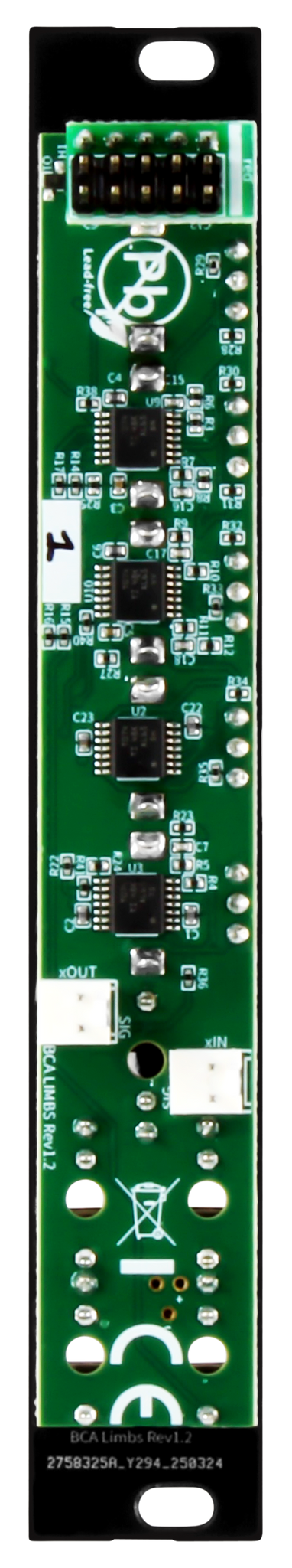

Limbs features two 2-pin connectors on the rear of the module (input and output), allowing multiple Limbs modules to be daisy-chained together. This makes it possible to build a very large distribution and macro control system from a single Quadipus.
Note: Limbs must be connected to a Quadipus module to operate. It does not function as a standalone module.
Features:
- Five independently attenuverted outputs
- Bi-color LEDs on all outputs indicating signal polarity and activity
- Rear-panel connectors for daisy-chaining additional Limbs modules
- Fully expandable as part of a Quadipus system
